Interface Card for Connecting Luminous Sensor EVM Series to FMC Connector Platforms like FPGA Development Kits

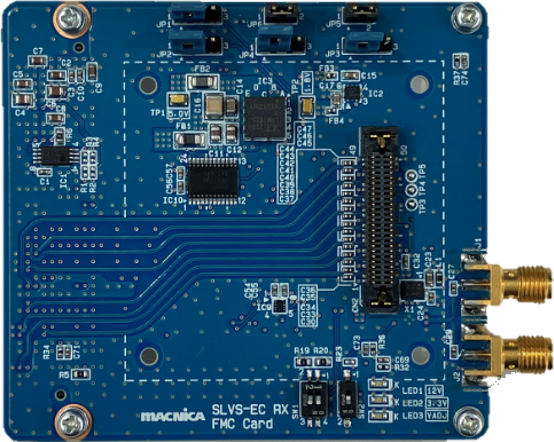

Luminous SLVS-EC Rx FMC Card

Luminous_SLVS-EC_Rx_FMC_Card

Overview

This interface card is specifically designed for use with platforms featuring an FMC connector, such as FPGA development kits. Pair this card with the following products to enable early evaluation of our SLVS-EC v3.0 Rx IP:

  • FPGA development kit with FMC connector
  • Luminous Sensor EVM
  • Luminous IMX537 Sensor Board
  • Luminous IMX901 Sensor Board

The board dimensions are 76 mm x 69 mm (typical).

Features

  • Equipped with an FMC connector supporting up to 8 transceivers
  • Onboard reference clock for transceivers, selectable from 72, 74.25, 144, and 148.5 MHz
  • Supports Vadj from 1.2V to 3.3V
  • Selectable I2C/SPI control interface between FPGA and sensor
  • Control interface can operate independently from the FPGA for external control
  • Features Samtec Edge Rate® connector for sensor board interfacing

Using the Development Kit

Luminous_SLVS-EC_Rx_FMC_Card_Dev-Kit
Luminous IMX537 SLVS-EC Sensor EVM

Overview

This kit is a module designed for evaluation purposes and features the SONY IMX537 CMOS sensor. It supports the SLVS-EC v2.0 interface with 8 data lanes.

It can be used in combination with the Luminous SLVS-EC Rx FMC Card, allowing connection to FPGA development boards that have FMC connectors.

Together with the SLVS-EC v3.0 Rx IP, this kit facilitates early-stage testing and verification of the actual device’s performance.

Features

  • Integrated with the SONY IMX537-AAMJ-C (1/1.8" monochrome CMOS image sensor with square pixels)
  • Supports SLVS-EC v2.0 with up to 8 lanes
  • Includes a 74.25 MHz INCK sensor clock
  • Built-in power sequencer (for controlled power-up and power-down)
  • Samtec Edge Rate® connector included
  • Enclosure supports C/CS mount lenses
  • Comes with a 6-inch cable

Dimensions

  • Sensor board dimensions: 50mm x 50mm (approx.)
  • Module enclosure dimensions: 56mm x 64mm x 21.42mm (approx.)
Luminous_IMX537_Case_Front
Luminous_IMX537_Case_Back

Front

Back

IMX901_EVM_Front

Overview

This kit is a development module featuring the SONY IMX901 CMOS sensor. It is compatible with the SLVS-EC v3.0 interface (4 lanes) of the IMX901.

By pairing this kit with the Luminous SLVS-EC Rx FMC Card, it can be connected to FPGA development boards that have FMC connectors. Additionally, using this kit in combination with the SLVS-EC v3.0 Rx IP allows for early-stage evaluation and validation of the actual device.

Features

  • Integrated with SONY IMX901 AMR-C sensor (1.4", approximately 16.41 million pixels, horizontal 8K high resolution, wide-aspect global shutter CMOS sensor).
  • Supports SLVS-EC v3.0 with up to 4 lanes.
  • Includes Sensor INCK (74.25 MHz).
  • Comes with a Power Sequencer for managing rise and fall times.
  • Equipped with a Samtec Edge Rate® connector.
  • Enclosure supports C/CS mount lenses.
  • Includes a 6-inch cable.

Dimensions

  • Sensor board: 50mm x 50mm (typical).
  • Module housing: 56mm x 64mm x 21.42mm (typical).



IMX901_Case_Front
IMX901_Case_Back

Front

Back
