MEP100 100G ST 2110 SmartNIC Solution: Maximize SMPTE ST 2110 Processing Power
Key Features
MEP100 Features

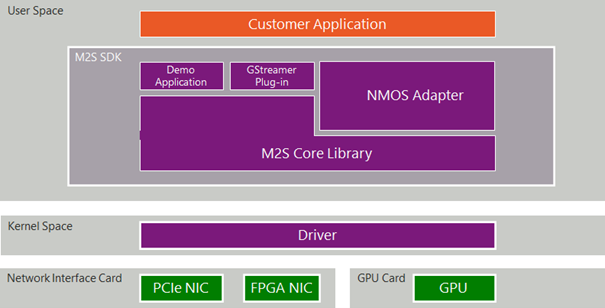

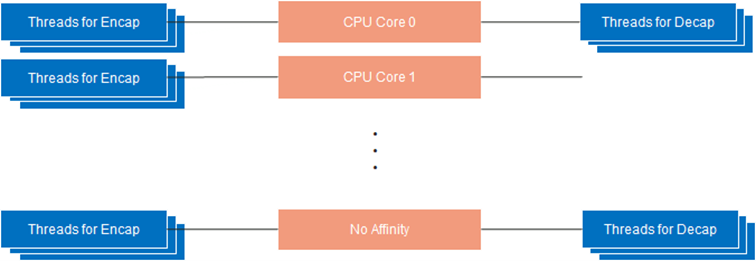

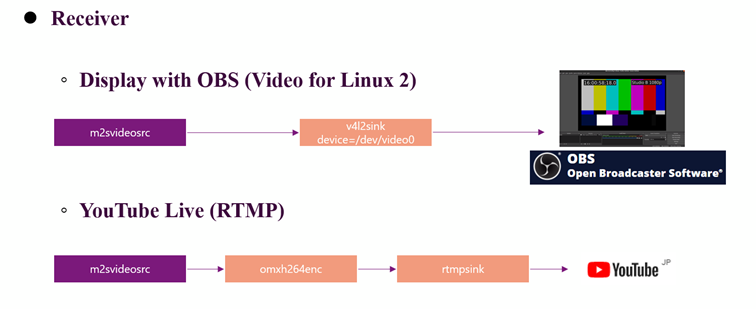

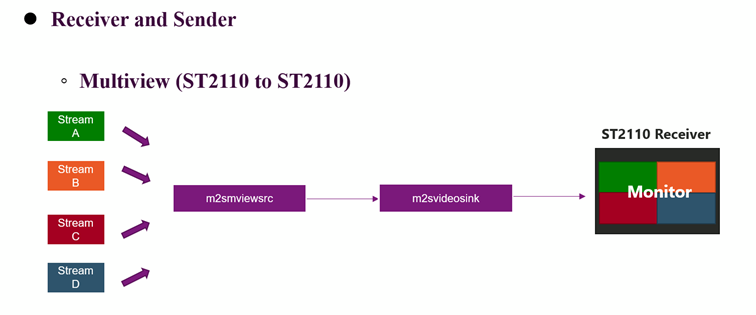

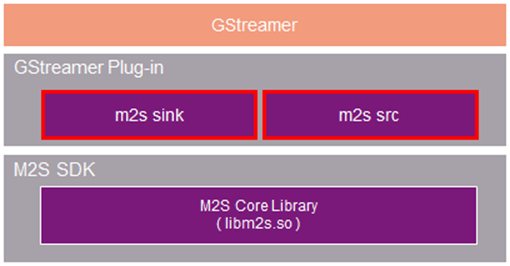

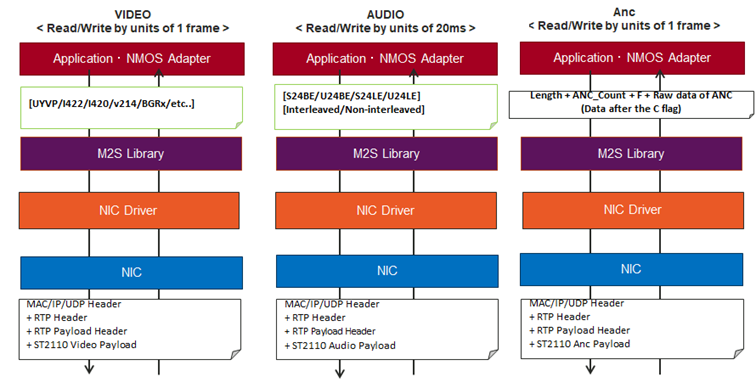

Features | Specifications | Note | |
---|---|---|---|
Software | Target OS | Linux | |
User interface | Macnica M2S plain API | ||
Ethernet | 100Gbe x 2 | ||
PCIe Streaming | System Bus | PCIe Gen4 x 16 | |
DMAC | Macnica ST21110 specific DMAC | Version: Quartus 21.3 Pro | |
Video Buffer Pixel Format | UYVP: Packed 10bit YUV422 only | U0-Y0-V0-Y1 U2-Y2-V2-Y3 | |
ST2059 | Macnica ST2059 IP Core: FPGA components + SW Stack working on Host PC | Off loading to HPS is out of scope in this phase | |
ST2110-20 | Resolution | 3840x2160p, 1920x1080p, 1920x1080i | |
Number of Streams | Up to 32 TX and 32 RX | ||
Mapping Structure | 4:2:2 10bit | ||
Frame Rate (Hz) | 59.94.50.60 | ||
ST2110-21 | Supported Type | TX side: Type-NL RX Side: Type-W | |
ST2110-22* (JPEG XS codec base) | Resolution | 3840x2160p, 1920x1080p, 1920x1080i | |
Number of Streams | Up to 4 TX and 8 RX | Planning ST2110-20 n 22 convertible design | |
Mapping Structure | 4:2:2 10bit | ||
Frame Rate (Hz) | 59.94.50.60 | ||
ST2110-30 | Number of Streams | Up to 32 TX and 32 RX | |
Conformance Level | Level-B + 32ch | ||
Sampling Rate | 48KHz | ||
Number of channel per stream | 1 to 32 | Packet time 1ms up to 8ch Packet time 125us up to 32ch | |
ST2110-40* | Number of Streams | Up to 32 TX and 32 RX | |
ST2022-7 | Support Class | Class-A, B, C and Class-D | Depending on system memory resource |
NMOS | Support protocol | IS-04 and IS-05 |
