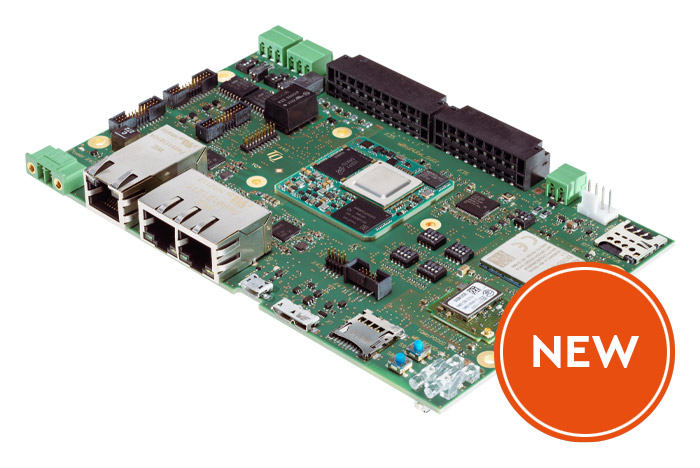

Starterkit STKa64xxL

SMARC Evaluation kit based on TQMa8MPxS

Evaluation kit based on the minimodule TQMa8MPxS, which is based on the i.MX 8M Plus processor an Arm® Cortex®-A53 from NXP. The integrated graphics controller with GPU and hardware acceleration for video encoding and decoding supports applications with high requirements for displaying complex graphics.The starter kit has several interfaces that allow an uncomplicated implementation of various applications.



Features

  • Arm® Cortex® A53 based on i.MX 8M Plus
  • Advanced Audio properties with HiFi4 DSP
  • Machine Learning Accelerator 2.3 TOPS
  • Integrated Cortex®-M7
  • High-speed communication via 2x - Gbit Ethernet (1x TSN), 1x PCle and 2x USB 3.0 interface
  • Low power consumption (typ. 4 W)
  • Integrated security functions





Ordering Information

STKa64xxL–AASTKa64xxL (Eval Kit) with TQMa64xxL-AA, Dual Cortex®-A53/1 GHz, 2x Dual Cortex®-R5F/800 MHz, Cortex®-M4/400 MHz, 8 GB eMMC, 1 GB LPDDR4, 64 kB EEPROM, RTC, 1x USB 2.0 OTG, 2x ETH 10/100/1000 (PRU), 1x ETH 10/100/1000, 2x CAN FD, 1x Temperature sensor, GPIOs (4x 24V_IN,  4x 24V_OUT, 8x AI_IN), Reset-Button, SD-Card interface, Power Supply, 4 GB SD card, Cables
STKa6442L-AC

Starter-Kit with:

TQMa6442L-AC, Dual Cortex®-A53/1 GHz, 2x Dual Cortex®-R5F/800 MHz, Cortex®-M4/400 MHz, 1 GB SDRAM, 64 kB EEPROM, RTC, Fieldbus enabled

Mainboard Features:

2x ETH 10/100/1000 (PRU), 1x ETH 10/100/1000,

1x USB 2.0 OTG, 2x CAN FD,

1x Temperature sensor,

GPIOs (4x 24V_IN, 4x 24V_OUT, 4x AI_IN),

Reset-Button, SD Card interface

Accessory set containing:

Power Supply, 4 GB SD card, Cables
