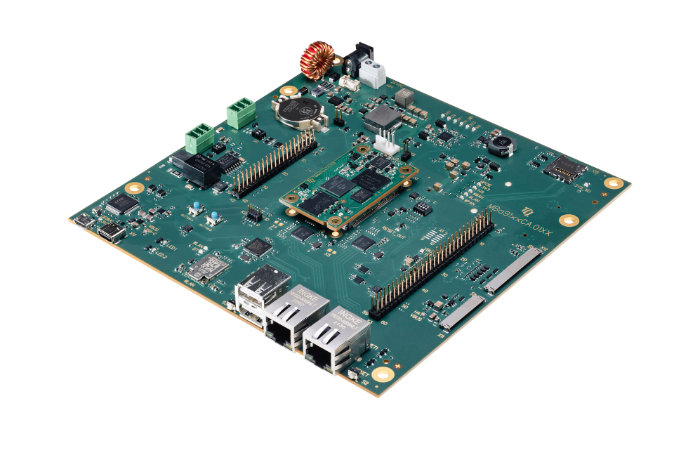

Starterkit STKa91xx

Evaluation kit based on TQMa91xxLA and TQMa91xxCA

Evaluation kit based on the minimodule TQMa91xxLA and TQMa91xxCA which are based on the i.MX 91 processor an Arm® Single Cortex®-A55 from NXP. The integrated graphics controller supports applications with requirements for displaying graphics.The starter kit has several interfaces an WiFi which allow an uncomplicated implementation of various applications.



Features

  • Arm® Cortex®-A55 based on i.MX 93
  • High-speed communication via 2x Gbit Ethernet (1x TSN), 2x USB 2.0 interface
  • Low power consumption (typ. 2W)
  • Integrated security functions
  • Advanced Secure Element SE050
  • Gyroscope sensor

Ordering Information

STKa91xxLASTKa91xxLA (Eval Kit) with TQMa91x1LA-AA, Single Cortex A55/1,4 GHz, 1 GB LPDDR4, 8 GB eMMC Flash, 64 kB EEPROM, RTC, 2x USB 2.0 HOST, 1x USB Type C, 2x ETH 10/100/1000, 2x CAN FD, 1x RS485, 1x LVDS, 1x MIPI CSI, 1x DP,  1x Mini PCIe + SIM Card (USB only), WLAN, Temperature sensor, Reset-Button, Micro SD Card interface, Power Supply, 8 GB SD card, Cables, Connector
