Sony IMX927 Series
Global Shutter CMOS for analytics-ready vision
Sony’s IMX927 series brings high-resolution, high-speed, high-sensitivity Global Shutter CMOS imaging to analytics-ready vision. Models span square and 4:3 formats with fast readout, low-noise architecture for better SNR in low illumination, and flexible SLVS-EC output for easy integration with popular SoCs, FPGAs, and ISPs. Macnica provides a no-soldering evaluation path with kits, drivers, and engineering support so your team can move from first image to production quickly.
| Specification | IMX927 | IMX928 | IMX929 | IMX937 | IMX938 | IMX939 | IMX947 | IMX949 |
|---|---|---|---|---|---|---|---|---|
| Pixel size (µm) | 2.74 | 2.74 | 2.74 | 2.74 | 2.74 | 2.74 | 5.48 | 5.48 |
| Resolution (MP) | 105 | 68 | 50 | 105 | 68 | 50 | 26 | 12 |
| Active pixels (H × V) | 10,248 × 10,248 | 8,256 × 8,256 | 8,200 × 6,152 | 10,248 × 10,248 | 8,256 × 8,256 | 8,200 x 6,152 | 5,142 × 5,142 | 4,100 × 3,076 |
| Aspect ratio | 1:1 | 1:1 | 4:3 | 1:1 | 1:1 | 4:3 | 1:1 | 4:3 |
| Optical diagonal (mm) | 39.7 | 31.9 | 28.1 | 39.7 | 31.9 | 28.1 | 39.7 | 28.1 |
| Shutter | Global | |||||||
| Max frame rate @ 8-/10-/12-bit | 109 / 100 / 72 fps | 136 / 124 / 89 fps | 219 / 197 / 134 fps | 55 / 50 / 36 fps | 69 / 63 / 45 fps | 109 / 100 / 72 fps | 109 / 100 / 72 fps | 768 / 687 / 489 fps |
| Control interface | 4-wire | |||||||
| Output interface | SLVS-EC v3.1 or v3.2 | |||||||
| Power (W) | 5.9 | 5.9 | 5.3 | 3.0 | 3.0 | 2.7 | 5.9 | 5.3 |
| Color options | Mono / RGB Bayer | |||||||
| Package | Connector ceramic, AR-coated seal glass | |||||||
Features and Benefits
- Advanced pixel architecture, higher sensitivity at low lux, cleaner details in shadows
- High-speed readout, more frames per second, better freeze frame of fast motion
- Configurable ROI, binning, sub-sampling, tune performance for analytics or recording
- HDR capture modes, retain highlight detail while protecting shadows
- Low dark current and temporal noise, improved SNR, fewer false positives in AI pipelines
- Flexible interfaces, connect to Ambarella, NVIDIA Jetson, Intel FPGA, and more
- Robust operating characteristics, stable performance across temperature range
Applications
- Automated Optical Inspection (AOI), 3D-AOI
- Semiconductor Inspection
- Lithium-Ion Battery Inspection (LiB)
- Solar Panel Inspection
- Flat Panel Display Inspection
- 3D Laser Profiler
- Aerial Imaging
- Sports Analytics

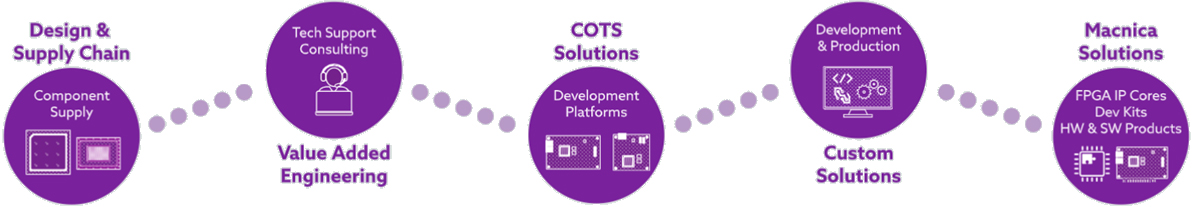

Why Macnica for Sony sensors?
- Deep Sony sensor experience across multiple generations
- Proven reference designs and production deployments
- Supply chain and fulfillment support, forecasting and lifecycle planning
- Sensor to solution, custom design services, SoCs, ISPs, Optics, and AI acceleration
Ready to evaluate the IMX927 series?
- Request a demo or dev kit
- Book a design review with our imaging engineers
- Get pricing and lead time for your program
