Canon CMOS Image Sensors & Cameras for Sale

Canon’s CMOS sensor technology offers OEMs and end users expanded possibilities for industrial vision applications. From uniquely large pixel sizes to exceptionally high pixel counts in a compact design, Canon CMOS image sensors and cameras push the boundaries of imaging possibilities. Facilitating on-going innovation in industrial camera and image capture technologies, Canon CMOS sensors support pioneering solutions for advanced industrial, machine vision and scientific applications.








Innovation has been at the heart of Canon’s success since the start. One of the largest patent holders in the U.S., Canon has developed highly unique CMOS sensors over the past decade. Each CMOS sensor from Canon features proprietary innovations at the pixel-level that translate into industry-leading performance in advanced industrial and scientific applications.



Innovation is within your reach. High-performance Canon CMOS image sensors are readily available to transform your imaging products.







Canon Image Sensors

120MXS CMOS sensors - Ultra-High Resolution and Speed

By incorporating close to the same number of pixels as photoreceptors in the human eye, the Canon 120MXS CMOS sensor delivers ultra-high 120 MP resolution in a compact design. At the same time, pixel-level innovations allow for faster readout speeds with lower noise ratios at 9.4fps – or higher when reducing the amount of readout lines. Uncover the finest details and find new clarity in industrial vision with the 120MXS CMOS Sensor from Canon. This Canon CMOS sensor is available in monochrome (120MXSM), color (120MXSC), and with a specialized RGB-NIR color filter array (120MXSI).

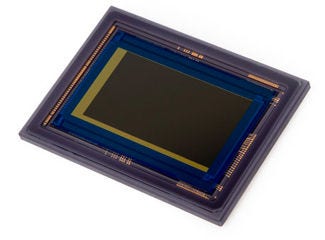

35MMFHDXS_A CMOS sensors - High Sensitivity in Low Light


The Canon 35MMFHDXS_A CMOS sensors use new pixel and readout circuitry technologies delivering ultra-high sensitivity with a 2.76 megapixel resolution. The enormous 19µm pixels, which minimize noise and dark current and allow control over readout position and frame rate, make the 35MMFHDXS_A sensors unique in capabilities among all other CMOS sensors for low light imaging. These CMOS sensors are available in monochrome (35MMFHDXSMA) and color (35MMFHDXSCA).

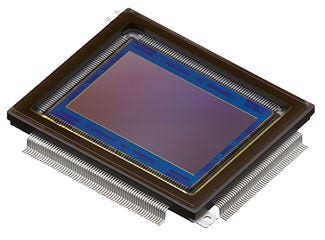

LI8020SA 250MP CMOS sensors - High Speed Image Capture in 250 Megapixel Resolution




Capturing detail 125 times greater than in full HD resolution, the LI8020SA CMOS sensor from Canon offers remarkably high 250 MP resolution to uncover more detail than ever before. This innovative, APS-H format sensor leverages a square pixel arrangement of 1.5µm x 1.5µm pixels, achieving ultra-high resolution in a compact design for use in a wide range of applications. Discover new possibilities in unparalleled resolutions with the LI8020SA CMOS Sensor from Canon. This CMOS sensor family is available in monochrome (LI8020SAM) or color (LI8020SAC).





Canon CMOS Sensor Evaluation Kit

Canon offers a portfolio of advanced CMOS sensor evaluation kits designed to help developers accelerate prototyping and integration. These kits provide complete reference platforms for evaluating Canon’s high-performance CMOS sensors, including the ultra-sensitive 35mm Full HD sensor, the 120MP ultra-high-resolution sensor, and the LI5040 with 5MP global shutter. Each kit includes a camera module, interface board, lens mount, and supporting software - enabling seamless sensor testing, image capture, and system design validation.





35MM Full HD High-Sensitivity CMOS Sensor Kit120MXSI 120MP CMOS Sensor Evaluation KitLI5040 5MP Global Shutter CMOS Sensor Kit
  • Resolution: 1920 x 1080
  • Large 19μm pixels for exceptional low-light performance
  • Ideal for night vision, astronomy, and scientific imaging
  • Resolution: 13280 x 9184 (120MP)
  • High-resolution APS-H sensor with rolling shutter
  • Suitable for industrial inspection and aerial imaging

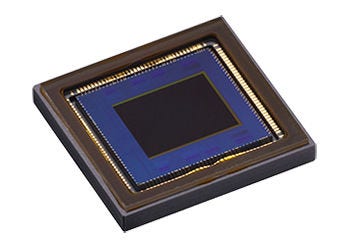

  • Resolution: 2464 x 2056
  • Global shutter and 5.0µm pixel pitch
  • Designed for machine vision and high-speed imaging





Interested in testing Canon CMOS sensors?

Contact Macnica Americas for kit availability, customization support, or design integration assistance.
